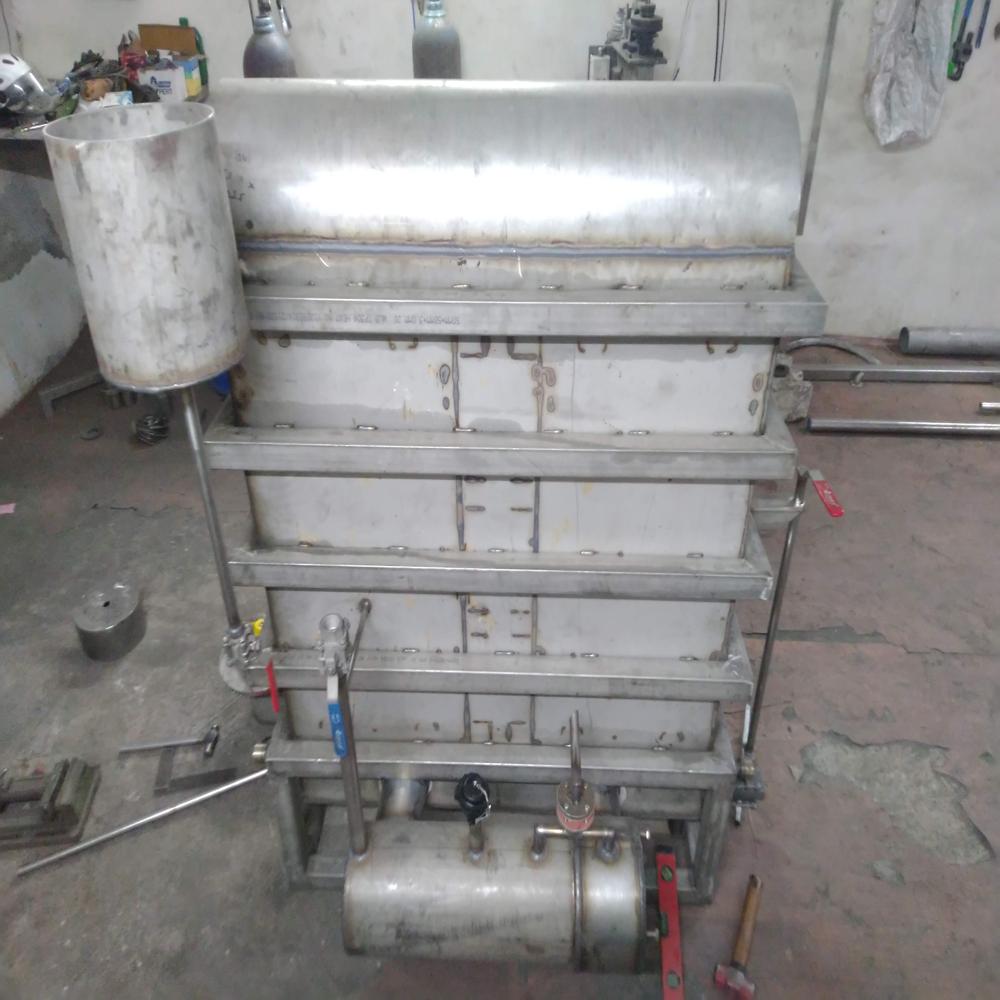

Cabinet Type Yarn Dyeing Machine

Name: Cabinet Type Yarn Dyeing Machine
Brand: SAI ASHISH ENGINEERING
Price: 350000.0 INR
Availability: InStock

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cabinet Type Yarn Dyeing Machine Specification

Applicable Material
Metal

Power
5 Horsepower (HP)

Voltage
440 Volt (v)

Type
HTHP Cabinate Dyeing Machine

Manufacturing Year
1 Months

Cabinet Type Yarn Dyeing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Supply Ability
1 Unit Per Month

Delivery Time
6 Week

Main Export Market(s)
Middle East, Africa, Central America, Asia, Australia, North America, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

About Cabinet Type Yarn Dyeing Machine

Key Specifications

Parameter	Typical Values
Working Temperature	Up to 140C is common; some machines allow up to ~150C.
Working Pressure	Around 45 bar ( ~56kg/cm) for high-pressure dyeing of synthetics.
Liquor-to-Material Ratio (MLR)	Very low liquor ratio: often 1:6 to 1:8, sometimes up to 1:61:8 for larger batches.
Material of Construction (Wetted Parts)	Stainless steel, especially SS316 / SS316L for corrosion resistance.
Heat / Cooling Gradients	Heating gradient about 25C 130C at ~3C/min; cooling from ~130C to ~8085C at slower rates, depending on cooling water pressure.
Pump & Circulation	Turbo or reversible turbopumps; InOut & OutIn circulation; variable speed drives/inverters.
Capacity / Batch Size	Ranges from small sample machines (few kg: 1520kg) up to hundreds of kg (100500 kg), depending on use.
Drain Temperature	Many machines are able to drain liquor at elevated temperatures (e.g. ~130C) to help eliminate unwanted residues, oligomers, etc.

Common Features & Accessories

Front / Top Lid Door with pneumatic or hydraulic locking, with safety interlocks.
Control System: PLC or dyeprogrammer (digital), touch interface; temperature/time controls; sometimes monitoring pH, flow, pressure.
Heat Exchanger internally to reduce heat loss and improve efficiency.
Colour / Chemical Addition Tanks with injection / metered dosing.
Air Pad System (for reducing liquor ratio, better coverage) or flooded system option.
Sample Pots for checking dyeing result while operation ongoing.
Safety & Monitoring: water level sensors, pressure and temperature safety interlocks.

Example Specifications (for a typical midsized HTHP Cabinet YarnDyeing Machine)

Heres what a midsized model might look like:

Batch capacity: ~100500 kg
Max temp: 140150 C
Max pressure: ~45 bar
Liquor ratio: 1:6 to 1:8
Pump: reversible turbopump, inverter driven
Material: SS 316 / 316L for all wetted parts
Drain temperature: ~130 C
Heating rate: ~3C/min (30 130 C)
Cooling rate: ~3.5 C/min (130 ~85 C)

Efficient Yarn Dyeing Process

This cabinet type HTHP dyeing machine guarantees high efficiency and precision in dyeing operations. Its advanced temperature and pressure controls enable thorough dye penetration, resulting in consistent shade development across batches. Whether processing cotton, polyester, or blends, users benefit from reduced dyeing times and operational energy savings.

Reliable and Modern Construction

Built from sturdy metal and powered by a 5 HP motor, the machine assures durability and reliability in demanding textile environments. Its new manufacturing (within 1 month) means the equipment incorporates the latest innovations in textile machinery, offering trouble-free operation and low maintenance requirements.

FAQs of Cabinet Type Yarn Dyeing Machine:

Q: How does a Cabinet Type Yarn Dyeing Machine operate?

A: This machine uses high temperature and pressure to circulate dye liquor evenly through yarn packages enclosed in a cabinet, ensuring uniform and efficient coloration. Controls for temperature, pressure, and timing create optimal dyeing conditions for various yarn types.

Q: What materials can be dyed using this machine?

A: The Cabinet Type Yarn Dyeing Machine is suitable for dyeing different yarns, including cotton, polyester, and their blends. Its strong metal construction allows it to accommodate a wide range of textile materials safely.

Q: When was this dyeing machine manufactured?

A: This HTHP Cabinet Type Yarn Dyeing Machine was manufactured within the last 1 month, ensuring you receive a product with the latest design features and technical enhancements.

Q: Where can this machine be sourced in India?

A: Manufacturers, suppliers, and wholesalers across India provide this yarn dyeing machine. Interested buyers can approach these channels for purchase, installation, and support.

Q: What is the dyeing process involved in using this machine?

A: Yarn packages are placed inside the cabinet, subjected to regulated heat and pressure while dye liquor circulates within the unit. This process enhances dye uptake and results in consistent, vibrant coloration.

Q: What are the benefits of using a Cabinet Type Yarn Dyeing Machine?

A: The machine delivers uniform dye absorption, reduced process duration, energy efficiency, and low maintenance. Its robust construction and up-to-date design offer reliable performance for textile producers.

Q: How much power does the machine require for operation?

A: The dyeing machine runs on a 5 Horsepower motor and requires a 440 Volt electric supply, which is standard for industrial textile machinery in India.
