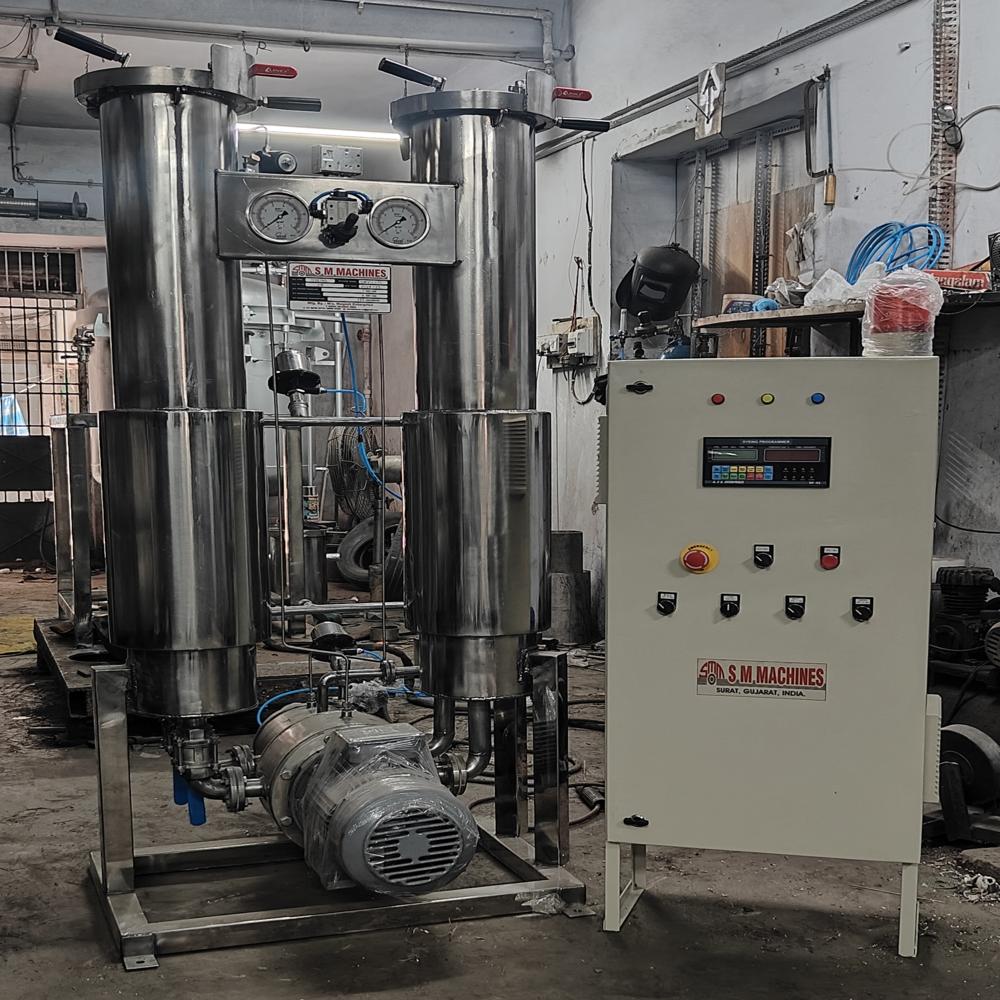

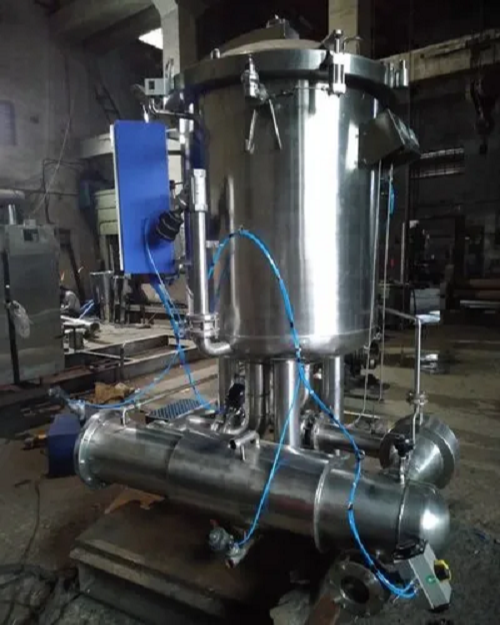

Vertical Yarn Dyeing Machine

Price 175000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vertical Yarn Dyeing Machine Specification

Applicable Material
Cotton yarn, Polyester yarn, Blended yarn

Usage & Applications
Textile yarn dyeing, piece dyeing, sample dyeing, laboratory applications

No Of Chamber
Single or Double (as per model)

Fabric Type
Yarn (cotton, polyester, blends, wool, acrylic, viscose)

Temperature Range
Room temperature to 140C

Volume
800 L

Capacity
Up to 500 kg per batch (model dependent)

Speed
Variable, up to 1500 rpm

Power
15 kW

Weight
Approx. 2200 kg

Control Type
PLC controlled with digital display

Condition
New

Machine Type
Automatic Vertical Dyeing Machine

Pump Type
Stainless Steel High-Flow Circulation Pump

Voltage
380V / 415V, 50Hz, 3 Phase

Features
Energy Efficient, Uniform Dyeing, High Productivity, Low Liquor Ratio, Easy Maintenance

Manufacturing Year
2023

Dimension (L*W*H)
2200 mm x 1450 mm x 3400 mm

Type
Vertical Yarn Dyeing Machine

Loading Type
Top loading

Cooling Type
Automatic water cooling system

Water Consumption
Optimized for low usage

Program Memory
Up to 50 dyeing programs

Gasket
Silicon (heat resistant)

Service & Support
On-site installation and training provided

Noise Level
Below 70 dB

Pressure Rating
Max 4 kg/cm²

Heating Source
Steam or Electric heating

Display
Touch screen HMI

Liquor Ratio
1:5 to 1:8 (Depending on yarn type)

Material of Construction
SS 304/316 grade stainless steel

Automation Grade
Fully automatic

Basket Type
Spring-loaded perforated basket

Safety Features
Overpressure, Overtemperature, Automatic shut-off

Vertical Yarn Dyeing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
surat

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Month

Delivery Time
Months

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
Standard Packing Or As per Customer Requirement on chargable basis

Main Export Market(s)
Central America, Asia, Western Europe, Middle East, South America, Eastern Europe, North America, Australia, Africa

Main Domestic Market
All India

About Vertical Yarn Dyeing Machine

Sai Ashish Engineerig Vertical Yarn Dyeing Machine has been designed for dyeing Polyester, Cotton, Viscose, Nylon, Acrylic, Texturised, Silk, etc., in various forms Cones, Loose Hank, Tops, and Fabric etc. It caters to the needs of high productivity textile Industries.

Energy-Efficient Dyeing for High Productivity

This automatic vertical yarn dyeing machine delivers outstanding energy savings with a highly uniform dyeing result. Its variable speed high-flow circulation pump and low liquor ratio (1:5-1:8) optimize water and chemical usage, ensuring high productivity while reducing environmental impact. The machine is equipped with advanced safety and automation features, making it suitable for large-scale manufacturing and laboratory applications alike.

Robust Construction for Longevity

Made from SS 304/316 grade premium stainless steel, the machine resists corrosion and maintains product safety standards. The spring-loaded perforated basket and silicon heat-resistant gasket ensure consistent performance during top-loading operations, while the automatic water cooling system protects yarn quality through precise temperature management.

Advanced Automation and User-Friendly Operation

Featuring a PLC-controlled digital interface and touch screen HMI, the dyeing machine supports up to 50 program memories. Operators can easily adjust parameters and monitor each cycle, benefiting from auto shut-off and pressure controls for added security. On-site installation and comprehensive training support seamless integration into new or existing dyeing facilities.

FAQ's of Vertical Yarn Dyeing Machine:

Q: How does the vertical yarn dyeing machine ensure uniform dyeing results?

A: The machine utilizes a high-flow stainless steel circulation pump to maintain even dye distribution through the yarn. Combined with variable speed control, spring-loaded perforated baskets, and precise automatic cooling, these features enable consistent color penetration and minimize shade variation.

Q: What is the recommended liquor ratio for different yarn types in this machine?

A: Depending on the type of yarn-cotton, polyester, blends, wool, acrylic, or viscose-the liquor ratio can be set between 1:5 to 1:8. This adjustable range allows operators to optimize dye and resource usage for both economic and environmental benefits.

Q: When is on-site installation and training provided for the machine?

A: On-site installation and training are included as part of the purchase and are scheduled immediately upon delivery and commissioning anywhere in India. Trained technicians conduct setup, calibration, and educate operators on safe usage and maintenance.

Q: Where can this vertical yarn dyeing machine be used?

A: This machine is suitable for textile manufacturing plants, sample dyeing laboratories, and piece dyeing units. Its robust design and automation features enable easy integration into both new and established production facilities across varied textile sectors.

Q: What safety features are included to protect operators and ensure safe operation?

A: Safety is prioritized through overpressure and overtemperature detection, automatic shut-off mechanisms, and a silicon heat-resistant gasket, all of which prevent operational hazards and protect personnel during dyeing processes.

Q: How is the machine maintained for long-term performance and easy servicing?

A: The stainless steel construction, user-friendly PLC controls, and spring-loaded basket design allow for straightforward cleaning and maintenance. The machine's engineering supports quick access to key components, minimizing downtime during routine servicing.

Q: What are the main benefits of using this automatic vertical dyeing machine for textile production?

A: Benefits include energy efficiency, reduced water and chemical consumption, high-quality uniform dyeing of various yarns, fully automatic operation, and flexible batch capacities. Additionally, the digital touch screen HMI and programmable settings streamline workflow, maximizing productivity.
